| Material: | Galvanized Iron Wire | Wire Diameter: | 2.0mm-4.0mm |
|---|---|---|---|
| Hole Shape:: | Hexagonal | Mesh Size: | 60x80mm, 80x100mm |
| Box Size: | 2x1x1 | Color: | Silver |
| Surface Treatment: | Hot-dipped Galvanized | Application: | Construction Wire Mesh |
| Certification: | ISO9001 | Samples: | Free |
| High Light: | 80x100mm wire mesh baskets retaining walls,2m wire mesh baskets retaining walls,gabion baskets 2x1x1 |
||
2mx1mx1m Hot-dipped galvanized gabion box retaining wall
Product Description

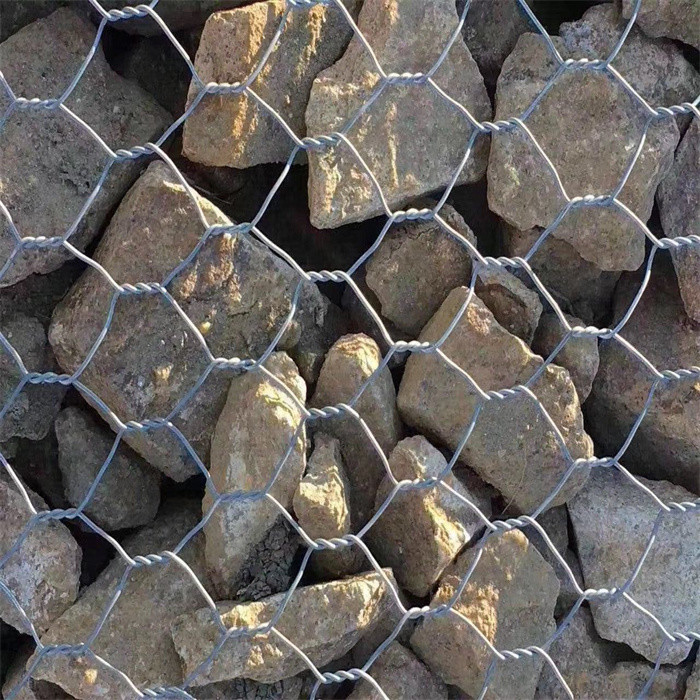

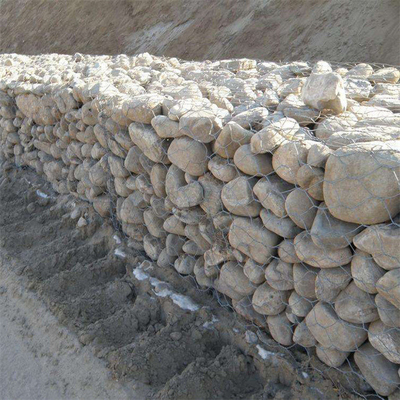

Gabion boxes are made of heavy galvanized wire / ZnAl (Golfan) coated wire / PVC coated wires, the mesh shape is hexagonal style. The gabion boxes are used widely in slope protection, foundation pit suporting, mountain rock holding, river and dams scour protection.
Gabion boxes can be supplied in various lengths, widths and heights. In order to strengthen the boxes,all the edges of the structure shall be selvedged with wire of bigger diameter.
Product Specification
| Specification | |||
| Opening(mm) | Wire diameter metal wire(mm) | Wire diameter PVC coated/inner/outside(mm) | Strands |
| 60 X80 | f 2.0/2.8 | f 2.0/3.0-2.5/3.5 | 3 |
| 80 X 100 | f 2.0/3.2 | f 2.0/3.2-2.8/3.8 | 3 |
| 80 X 120 | f 2.0/3.2 | f 2.0/3.2-2.8/3.8 | 3 |
| 100 X 120 | f 2.0/3.4 | f 2.0/3.0-2.8/3.8 | 3 |
| 100 X 150 | f 2.0/3.4 | f 2.0/3.0-2.8/3.8 | 3 |
| 120 X 150 | f 2.0/4.0 | f 2.0/3.0-3.0/4.0 | 3 |
Product Application
