Anping Hehang Wire Mesh Products Co.,Ltd
Sales & Support:
|
Product Details:
Payment & Shipping Terms:
|
| Product Name: | Welded Mesh Fencing | Material: | Low-Carbon Iron Wire |
|---|---|---|---|
| Wire Diameter: | 2.5-4.5mm | Hole Size: | 50*200mm |
| Color: | Black, Red, Yellow, Blue, Gray | Height: | 0.6-2.5m |
| Width: | 2.5m | Post Size: | 32mm,40mm,60mm |
| Surface Treatment: | Galvanized+PVC Coated | Feature: | Easily Assembled |
| Application: | Garden Fence | Weave Style: | Welded |
| High Light: | Triangle Bend Welded Mesh Fencing,2.5mm Welded Mesh Fencing,1.8m welded curved mesh fence |
||

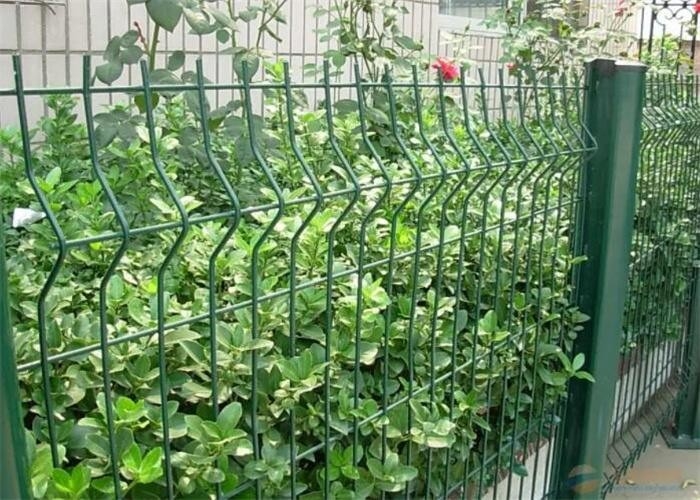

PVC Coated Triangle Bend Wire Mesh Fence 3D Curved Garden Welded Mesh Fencing
Welded Mesh Fencing Description
3D Welded Mesh Fencing as an economical type of fence system, it is is a kind of welded mesh fence with longitudinal folds, which makes the fence stronger. The fence panels is welded by high quality low carbon steel wire. It's common surface treatment are hot dipped galvanized or electrotatic polyester powder spray coating over galvanized wire. The common post of the welded fence are SHS tube, RHS tube, peach post, round post or special-shaped post. Fence panel will be fixed to the post by suitable clips according to different post type. Due to its simple structure, see-through panel, easy installation, nice apprearance , the welded mesh fence are more and more popular.
| Panel height | Panle Length | Wire Diameter | Mesh Size | Folds No. |
| 1.03m |
2.0m 2.5m |
Gal+PVC Painted 3.85mm/4.0mm 4.85mm/5.0mm Gal+PVC Coated 3.0mm/4.0mm 4.0mm/5.0mm |
50*200mm 55*200mm 50*150mm 55*100mm |
2 |
| 1.23m | 2 | |||
| 1.5m | 3 | |||
| 1.53m | 3 | |||
| 1.7m | 3 | |||
| 1.73m | 3 | |||
| 1.8m | 4 | |||
| 1.93m | 4 | |||
| 2.0m | 4 | |||
| 2.03m | 4 | |||
| 2.4m | 4 |
Welded Mesh Fencing Advantage
Welded mesh fence has simple structure, beautiful appearance and suitable benders. The surface can be treated to dip plastic with different colors, such as yellow, green, red. This type fence mostly uses post with bottoms, thus it just needs to install bolt.
Welded Mesh Fencing Application
Welded Mesh Fencing Packing
Our Service
1. Reply your enquiry in 24 working hours;
2. Experienced staffs will answer all your questions in professional and fluent English;
3. Customized design is available;
4. Samples are free;
5. Special discount can be offered with large quantity;
6. We will try our best to meet your requirements and supply you best quality of the products.
Contact Person: Ms. Bella
Tel: +8613623182393
Fax: 86-318-7538295
