Product Details:
Payment & Shipping Terms:
|
| Product Name: | Galvanized Square Wire Mesh | Material: | Low-Carbon Iron Wire |
|---|---|---|---|
| Wire Diameter: | 0.12-1.2mm | Mesh Size: | 20x20 Mesh |
| Weave Type: | Plain Weave | Hole Shape: | Square Hole |
| Roll Width: | 0.2m-2.0m | Roll Length: | 30m |
| Finish: | Galvanized | Application: | Window Screen |
| Highlight: | 20 x 20 Galvanized Square Wire Mesh,2m Galvanized Square Wire Mesh,galvanised mesh fencing panels plain woven |
||
Filtration plain woven iron 20 * 20 galvanized square wire mesh

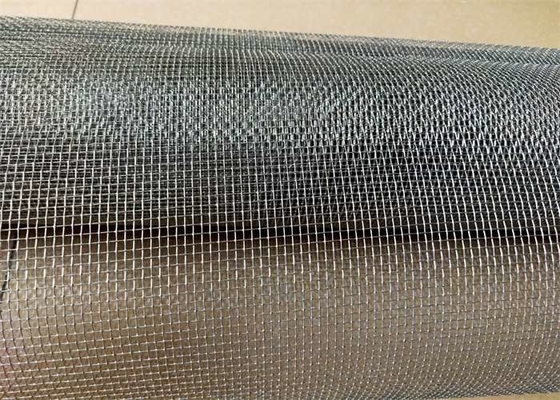

Galvanized Square Wire Mesh Description
Galvanized Square Wire Mesh made of selected plain steel wire offers precise construction, uniform opening, excellent corrosion and rust resistance. Galvanized square wire mesh is extensively used as window screening, safety guards on machinery enclosures, also used in filtering liquid and gas, sieving grain.
| Galvanized Square Wire Mesh Specification | ||||
| Mesh | Wire Gauge (BWG) | Width | Length | Packing |
| 2X2Mesh | 16,17,18,19,20,21 | 0.5m-1.5m | 25m,30m | In Roll |
| 3X3Mesh | 19,20,21,22 | 0.5m-1.5m | 25m,30m | In Roll |
| 4X4Mesh | 20,21,22,23,24 | 0.5m-1.5m | 25m,30m | In Roll |
| 5X5Mesh | 22,23,24,25,26 | 0.5m-1.5m | 25m,30m | In Roll |
| 6X6Mesh | 22,23,24,25,26 | 0.5m-1.5m | 25m,30m | In Roll |
| 7X7Mesh | 23,24,25,26 | 0.5m-1.5m | 25m,30m | In Roll |
| 8X8Mesh | 24,25,26,27 | 0.5m-1.5m | 25m,30m | In Roll |
| 10X10Mesh | 26,27,28,29,30 | 0.5m-1.5m | 25m,30m | In Roll |
| 12X12Mesh | 26,27,28,29,30 | 0.5m-1.5m | 25m,30m | In Roll |
| 20X20Mesh | 31,32,33,34 | 0.5m-1.5m | 25m,30m | In Roll |
| 30X30Mesh | 32,33,34 | 0.5m-1.5m | 25m,30m | In Roll |
Galvanized Square Wire Mesh Characteristics
Good positioning performance
High strength Flame resistance
Anti-corrosion
Long service life
Good pervious to light
Anti-UV Environment-Friendly
Galvanized Square Wire Mesh Application
Galvanized Square Wire Mesh Packing
Galvanized Square Wire Mesh Warehouse
Our Service
1. Reply your enquiry in 24 working hours;
2. Experienced staffs will answer all your questions in professional and fluent English;
3. Customized design is available;
4. Samples are free;
5. Special discount can be offered with large quantity;
6. We will try our best to meet your requirements and supply you best quality of the products.
