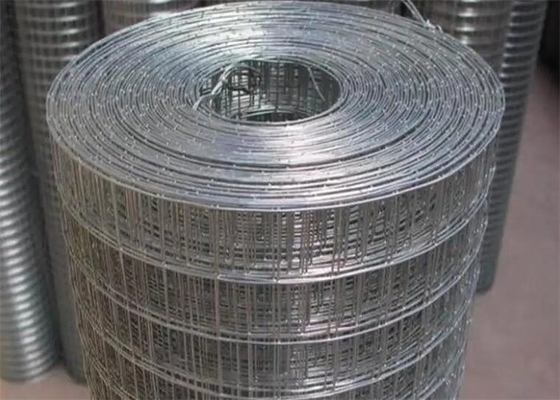

12.5 Gauge Galvanised Mesh Fencing Roll 4 Ft X 50 Ft 2 X 4 Inch

12.5 Gauge Galvanised Mesh Fencing Roll 4 Ft X 50 Ft 2 X 4 Inch

12.5 Gauge Galvanised Mesh Fencing Roll 4 Ft X 50 Ft 2 X 4 Inch
12.5 Gauge Galvanised Mesh Fencing Roll 4 Ft X 50 Ft 2 X 4 Inch 12.5 Gauge Galvanised Mesh Fencing Roll 4 Ft X 50 Ft 2 X 4 Inch

Large Image :  12.5 Gauge Galvanised Mesh Fencing Roll 4 Ft X 50 Ft 2 X 4 Inch

Product Details:
Place of Origin: China
Brand Name: Hehang
Certification: CE Certificate
Model Number: Wm-35
Payment & Shipping Terms:
Minimum Order Quantity: 50 rolls
Price: Negotiable
Packaging Details: Plastic film inside, waterproof paper outside.
Delivery Time: within 20ays
Payment Terms: T/T, L/C, Western Union
Supply Ability: 5000 rolls per month
Detailed Product Description
Product Name: Welded Wire Mesh Roll Wire Diameter: 12.5 Gauge
Mesh Size: 2'' X 4'' Hole Shape: Square Hole
Width: 4 Ft Length: 50 Ft
Surface Treatment: Hot-dipped Galvanized Color: Silver
Type: Welded Wire Mesh HS Code: 73143100
Highlight:

12.5 gauge galvanised mesh fencing roll

,

square hole galvanised mesh fencing roll

,

2x4 galvanised wire mesh fencing rolls

12.5 Gauge Galvanized 4 ft x 50 ft Welded Wire 2" x 4" Inch Mesh Roll





Welded Wire Mesh Roll Description



Welded wire mesh is constructed with two orthogonal wires that are joined together at their intersections using a resistance welding process to form a grid. The line wires of the grid are guided through the welder using a pattern board. The machine drops cross wires into place and fuses them together to create the two distinctive planes that form welded wire mesh.



Welded Wire Mesh Roll Type :



Hot-dipped Galvanized Welded Wire Mesh
Electro Galvanized Welded wire mesh
PVC Coated Welded wire mesh
Stainless Steel Wire Welded Wire Mesh



Welded Wire Mesh Roll Characteristics :



smooth and trim mesh surface, solid and uniform structure and superior integral performance, it won't loosen even subject to local cutting or pressure, It has the characteristics of corrosion-resisting and oxidation-resisting.



Specification List of Welded Wire Mesh Roll
Opening Wire Diameter (BWG)
In inch In metric unit(mm)
1/4" x 1/4" 6.4mm x 6.4mm 22,23,24
3/8" x 3/8" 10.6mm x 10.6mm 19,20,21,22
1/2" x 1/2" 12.7mm x 12.7mm 16,17,18,19,20,21,22,23
5/8" x 5/8" 16mm x 16mm 18,19,20,21,
3/4" x 3/4" 19.1mm x 19.1mm 16,17,18,19,20,21
1" x 1/2" 25.4mm x 12.7mm 16,17,18,19,20,21
1" x 1" 25.4mm x 25.4mm 16,17,18,19,20,21
1-1/2" x 1-1/2" 38mm x 38mm 14,15,16,17,18,19
1" x 2" 25.4mm x 50.8mm 14,15,16
2" x 2" 50.8mm x 50.8mm 12,13,14,15,16
2" x 3" 50mm x 70mm 2.0mm,2.5mm,1.9mm,1.65mm
3" x 3" 75mm x 75mm 2.67mm,2.41mm,2.11mm,1.83mm,1.65mm
2" x 4" 50mm x 100mm 2.11mm,2.5mm
4" x 4" 100mm x 100mm 2.0mm,2.5mm
Technical Note:
1,Standard roll length: 20m 25m 30m; width: 0.5m to 1.83m
2,Special sizes available at request
3,Packing: in waterproof paper in rolls. Custom packing available at request.



Welded Wire Mesh Roll Application



Road isolation, ground leak proof anti cracking, highway reinforcement, wire mesh fence breeding pens, machine nets, crafts parts, fence wall insulation, anti cracking, floor heating, ceiling decoration, agricultural circle of corn and so on.



12.5 Gauge Galvanised Mesh Fencing Roll 4 Ft X 50 Ft 2 X 4 Inch 0



Welded Wire Mesh Packing And Delivery



12.5 Gauge Galvanised Mesh Fencing Roll 4 Ft X 50 Ft 2 X 4 Inch 1



Welded Wire Mesh Workshop



12.5 Gauge Galvanised Mesh Fencing Roll 4 Ft X 50 Ft 2 X 4 Inch 2



12.5 Gauge Galvanised Mesh Fencing Roll 4 Ft X 50 Ft 2 X 4 Inch 3



Our Service


1. Reply your enquiry in 24 working hours;

2. Experienced staffs will answer all your questions in professional and fluent English;

3. Customized design is available;

4. Samples are free;

5. Special discount can be offered with large quantity;

6. We will try our best to meet your requirements and supply you best quality of the products.
