Product Details:
Payment & Shipping Terms:
|
| Product Name: | Razor Barbed Wire | Material: | Steel |
|---|---|---|---|
| Razor Type: | BTO-22 | Core Wire Dia: | 2.5mm |
| Blade Thickness: | 0.5mm | Blade Length: | 22mm |
| Blade Spacing: | 34mm | Surface Treatment: | Hot-dipped Galvanized |
| Color: | Silver | Application: | For Prison |
| Packing: | Woven Bag | Roll Weight: | 4-20kg/roll |
| High Light: | bto-12 razor barbed wire,zinc coating prison razor barbed wire,bto-12 concertina barbed tape |
||
Heavy Duty Zinc Coating Anti Climb Blade Concertina Razor Barbed Wire For Prison
Razor Barbed Wire Description

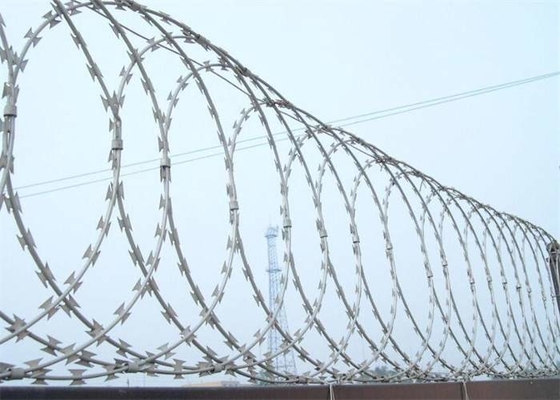

Razor Barbed Wire is also named concertina razor wire, razor fencing wire, razor blade wire. It is a kind of modern security fencing materials with better protection and fencing strength made of hot-dipped galvanized steel sheets or stainless steel sheets. With sharp blades and strong core wire, razor wire has the features of secure fencing, easy installation, age resistance and other properties.
Razor Wire Specifications | |||||
Model | Thickness (mm) | Wire Diameter (mm) | Barb Length (mm) | Bard Width (mm) | Bard Spacing (mm) |
BTO-12 | 0.5±0.05 | 2.5±0.1 | 12±1 | 15±1 | 26±1 |
BTO-15 | 0.5±0.05 | 2.5±0.1 | 15±1 | 15±1 | 33±1 |
BTO-22 | 0.5±0.05 | 2.5±0.1 | 22±1 | 15±1 | 34±1 |
BTO-28 | 0.5±0.05 | 2.5±0.1 | 28 | 15 | 45±1 |
CBT-30 | 0.5±0.05 | 2.5±0.1 | 30 | 18 | 45±1 |
CBT-60 | 0.6±0.05 | 2.5±0.1 | 60±2 | 32±1 | 100±1 |
CBT-65 | 0.6±0.05 | 2.5±0.1 | 65±2 | 21±1 | 100±1 |
Razor Type | Outside Diameter | No. Of Coils | Coil Length | Notes |
CBT-65 | 450mm | 33 | 8M | Single coil |
CBT-65 | 500mm | 41 | 10M | Single coil |
CBT-65 | 700mm | 41 | 10M | Single coil |
CBT-65 | 960mm | 53 | 13M | Single coil |
BTO-10.15.22 | 500mm | 102 | 16M | Cross type |
BTO-10.15.22 | 600mm | 86 | 14M | Cross type |
BTO-10.15.22 | 700mm | 72 | 12M | Cross type |
BTO-10.15.22 | 800mm | 64 | 10M | Cross type |
BTO-10.15.22 | 960mm | 52 | 9M | Cross type |
Razor Barbed Wire Advantage
High security
Barbed razor wire with the sharp razor guarantees a high quality whilst retaining high security.
Long life
Razor wire material of stainless steel or hot-galvanized makes sure for long life and low maintenance.
Easy installation
Short sections needed for urgent security can be installed extremely fast and with little equipment, allowing repairs to be carried out without compromising perimeter security.
Razor Barbed Wire Applications
Razor barbed wire is widely used in apartment house, organization units, prisons, frontier fence, military fields and other sites requiring severe fencing and security.
Razor Barbed Wire Packing
