Anping Hehang Wire Mesh Products Co.,Ltd
Sales & Support:
|
Product Details:
Payment & Shipping Terms:
|
| Product Name: | Gabion Mesh Baskets | Wire Diameter: | 4.0mm |
|---|---|---|---|
| Mesh Hole Size: | 50*50 Mm, 50*100 Mm | Hole Shape: | Square, Rectangle |
| Gabion Size: | 2x1x1m | Surface Treatment: | Hot-dipped Galvanized |
| Color: | Silver | Type: | Welded Gabion |
| Application: | Retaining Wall | Certificate: | ISO |
| High Light: | 2x1x1m Galvanized Welded Gabion Box,Retaining Wall Welded Wire Gabion Baskets,2x1x1m Welded Wire Gabion |
||

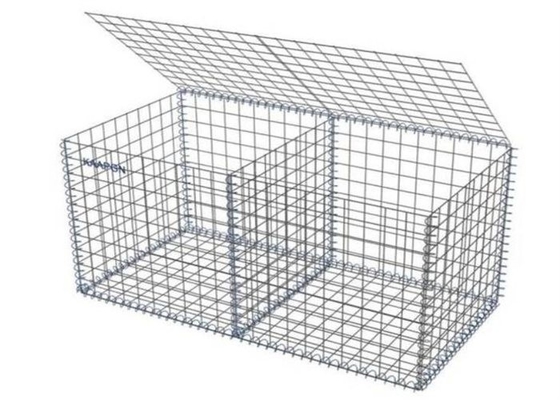

2x1x1m Hot Dipped Galvanized Welded Gabion Mesh Basket For Retaining Wall
Gabion Mesh Basket Description
Welded gabion mesh basket is made from welded wire mesh.They can be filled on site with hard durable stone materials to form mass gravity retaining structures. Owing to their inflexibility, welded gabions can not adapt to differential settlement or be used in water courses. In comparison with woven wire gabions, welded gabions offer a higher strength. In order to meet different project requirements, various wire diameters and unit sizes are available for welded gabion boxes.
|
Material
|
Galvanized Steel Wire, Galfan Steel Wire/Zinc-5%Aluminum Wire
|
|||
|
Wire Diameter
|
3 mm-6 mm
|
|||
|
Aperture
|
50*50 mm, 50*100 mm etc
|
|||
|
Gabion Box Size
|
100*30*30 cm, 100*50*30 cm, 100*100*50 cm, 100*100*100 cm etc.
|
|||
|
Finish
|
Hot Dipped Galvanized; Heavy Zinc Coating;Galfan Coating;PVC Coated.
|
|||
|
Normal Box Size(cm)
|
Diaphragms
|
Capacity (m3)
|
Mesh Size(mm)
|
|
|
100x30x30
|
None
|
0.09
|
50×50 or 100×50
|
|
|
100x50x30
|
None
|
0.15
|
||
|
100x100x50
|
None
|
0.5
|
||
|
100x100x100
|
None
|
1
|
||
|
150x100x50
|
1
|
0.75
|
||
|
150x100x100
|
1
|
1.5
|
||
|
200x100x50
|
1
|
1
|
||
|
200x100x100
|
1
|
2
|
||
|
Other sizes can be customized.
|
||||
Gabion Mesh Basket Advantages
1. Easy to install
2. High zinc coating thus anti-rust and anti-corrosive
3. Low cost
4. High security
5. Can be made into various shapes for decoration
Gabion Mesh Basket Application
Welded gabion mesh is widely used for the control and guide of water; preventing of rock breaking; water and soil, roadway and bridge protection; strengthening structure of soil; protection engineering of seaside area and retaining wall structures; hydraulic structures, dams and culverts; coastal embankment works; architectural feature retaining walls.
Gabion Mesh Basket Packing
Our Service
1. Reply your enquiry in 24 working hours;
2. Experienced staffs will answer all your questions in professional and fluent English;
3. Customized design is available;
4. Samples are free;
5. Special discount can be offered with large quantity;
6. We will try our best to meet your requirements and supply you best quality of the products.
